Panoramaxx Pure Air Hybrid: Fresh Air Laser-Welding PAPR Helmet

Features

Respiratory Protection

Face and respiratory protection system when combined with the e3000x blower kit

Laser Protection

Closed eye protection for hand-held laser processes, including internal laser protection frame which protects the eye from the side and prevents scattered radiation from entering.

Light State 2.5

Panoramic XXL field of view

Six times the field of vision of standard anti-glare protection.

Rechargeable Battery

Lithium-polymer battery is recharged either by light through the solar panel or directly with a USB charger

NIOSH® Approved

Certified by the National Institute for Occupational Safety and Health (NIOSH) to meet U.S. respiratory protection standards.

True-Color View

Realistic high-contrast color perception with no green or blue tint.

FadeTronic®

Opening of the anti-glare display can be continuously adjusted after welding to significantly reduce eye fatigue

ShadeTronic®

Automatically adapts to changing light conditions of the welding arc

Multi Sensor Detection

Up to 5 sensors for maximum safety, even in the most difficult lighting conditions

Grinding Mode

The brightest vision during grinding work ever to be offered by a welding helmet

Delay Function

Delay Function Feature

Sensitivity Regulation

Adapts the helmet to your environment and requirements

Anti-Glare

Anti-Glare feature

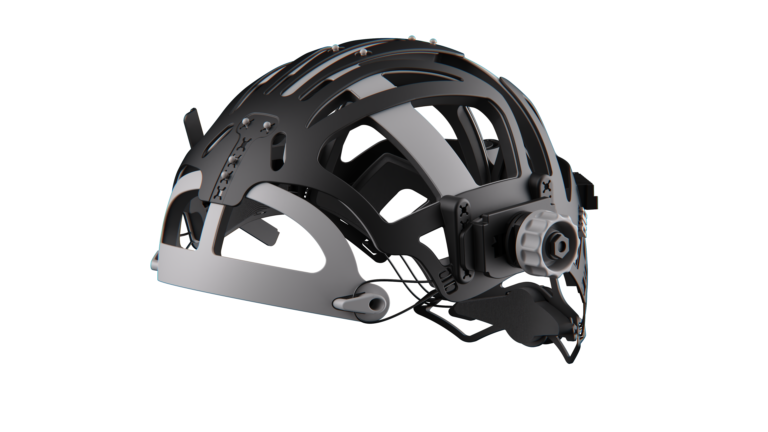

IsoFit® Headgear

Perfect fit that adapts to any head shape thanks to its three-dimensional adjustment options.

Hard Hat Adapter

Compatible with industrial construction helmet adapter accessory

Position Locker

The Position Locker ensures that the helmet reliably stays in the desired position – whether flipped up or down.

Patented Excenter

Positions the helmet optimally on your head – with just one twist

Overhead Welding

The rounded front cover lens makes this design suitable for overhead welding

Ergonomic Fit

Ergonomic Fit Feature

Lightweight

Lightweight design for maximum comfort

Warranty Extension

Simply register here to be covered for 3 years after purchase

Specifications

Shade Levels	Inactive: Shade level 3 Active, Manual: Shade level 4-9 ShadeTronic 5-13
Energy Supply	Solar cells, Li-polymer battery pack, chargeable via Micro-USB
Battery Life	300 to 500 charging cycles
Sensors	Five sensors
Sensitivity	Continuously, new with “Super High” sensitivity
Switching time	Light to Dark: 0.090ms at 20°C, 0.070ms at 55°C Dark to Light: 0.1s to 2.0s (with FadeTronic)
Field of Vision	2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
Classification EN379	1/1/1/2
Eye Protection	UV/IR protection: maximum protection at all shade levels Laser protection: 1030-1100nm 16321 OS W3/4-9/5<13 V2 1030-1100 D LB7 IR LB8 OS 1030-1100 OD7 C5 PS3 ISO 19818-1 OS CE
Operating Temperature	-10°C to +55°C / 14°F to 131°F
Storage Temperature	-20°C to +70°C / -4°F to 158°F
Total Weight	695g / 24.5oz
Certifications	CE, UKCA, complies to ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3
Scope of Delivery	Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Front Cover Lens, Warranty Card
Guarantee	2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register
