Sphere Series

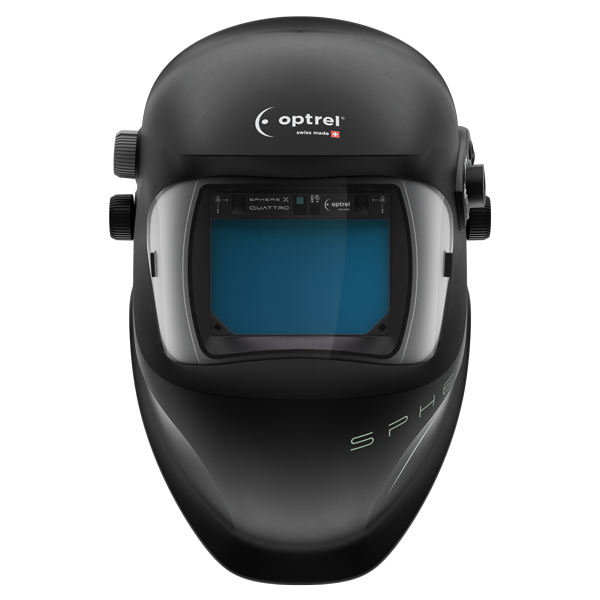

SphereX Quattro

Product #: 1006.580

The welding helmet of the next generation is here – developed for ultimate precision and performance, the Sphere X Quattro is your view into infinity.

The Sphere X Quattro offers the highest angular dependency, giving you a clearer, more consistent view even when welding out of position. Ideal for demanding industrial work, high-amp welding, and precision tasks. The Sphere X Quattro welding helmet comes with variable shade 3/5–13 and ShadeTronic® function, manual mode, HD vision with the best viewing-angle dependency class, opening delay with FadeTronic® function, true-color recognition, sensitivity adjustment, grind function, and IsoFit® X headgear.

  • 30% Larger Field of View + 5 sensors – superior detection and consistent lens response for maximum safety and precision

  • Perfect for heavy-duty applications, high-amperage welding, and demanding environments

  • True color view, maximum comfort, and consistent protection – engineered for professionals who expect more

List Price:

$655.00

Features

Icon for "Optical Class" represented by an eye and rating 1/1/1/1 on top of it.

4 Times Highest Class

Classification EN379 (Optical Class: 1, Stray Light Class: 1, Homogeneity Class: 1, Angle Dependency Class: 1) Applicable to all Quattro models.
Icon for "True Color View" represented by three circles intersecting.

True-Color View

Realistic high-contrast color perception with no green or blue tint.

Replaceable Batteries

Replaceable 2×CR2032 batteries for easy maintenance and continuous operation.
Icon for "Twilight Function" represented by multiple vertical lines descending to the right.

FadeTronic®

Opening of the anti-glare display can be continuously adjusted after welding to significantly reduce eye fatigue
Icon for "Shadetronic" represented by its text inside a circle with scale showing increasing decibels.

ShadeTronic®

Automatically adapts to changing light conditions of the welding arc
Icon for "Sensors" presented by a circular dot with wave signal.

Multi Sensor Detection

Up to 5 sensors for maximum safety, even in the most difficult lighting conditions
Icon for "Grinding Mode" represented by angle grinder disc.

Grinding Mode

The brightest vision during grinding work ever to be offered by a welding helmet
Icon for "Delay Function" represented by an arch and the number one, two, and three.

Delay Function

Prevents eye strain by controlling how quickly the lens returns to light state.
Icon for "Sensitivity Regulation" represented by a welding helmet and sun.

Sensitivity Regulation

Adapts the helmet to your environment and requirements
An icon for "External Operability" represented by ___

External Operability

Toggle grind mode and shade level adjustments without removing your helmet
Icon for "Sensitivity Regulation" represented by a welding helmet and sun.

Anti-Glare

Minimizes glare to improve visibility and reduce eye strain.

IsoFit® Headgear

Perfect fit that adapts to any head shape thanks to its three-dimensional adjustment options.
Icon for "Construction Helmet Adapter" represented by a side view of a hard hat.

Hard Hat Adapter

Compatible with industrial construction helmet adapter accessory

Position Locker

The Position Locker ensures that the helmet reliably stays in the desired position – whether flipped up or down.
Icon for "Patented Eccentric" represented by grinding disc and impact drill.

Patented Excenter

Positions the helmet optimally on your head – with just one twist
Icon for "Overhead Welding" represented by grinding disc and impact drill.

Overhead Welding

The rounded front cover lens makes this design suitable for overhead welding
An icon for "lightweight" represented by a piece of a bird's feather in white font.

Lightweight

Lightweight design for maximum comfort
An icon for "Warranty Extension of 2+1 Years" represented by numbers two and one.

Warranty Extension

Simply register here to be covered for 3 years after purchase

Applications

  • High-ampere applications
  • Heavy-duty steel construction
  • Electrode welding (stick welding, SMAW)
  • MIG / MAG welding (gas metal arc welding, GMAW)
  • GMAW high-performance welding
  • Flux-cored wire welding
  • Plasma welding
  • Micro plasma welding
  • Plasma cutting
  • Gas welding
  • Grinding work (in grinding mode)
  • Not suitable for laser welding!
