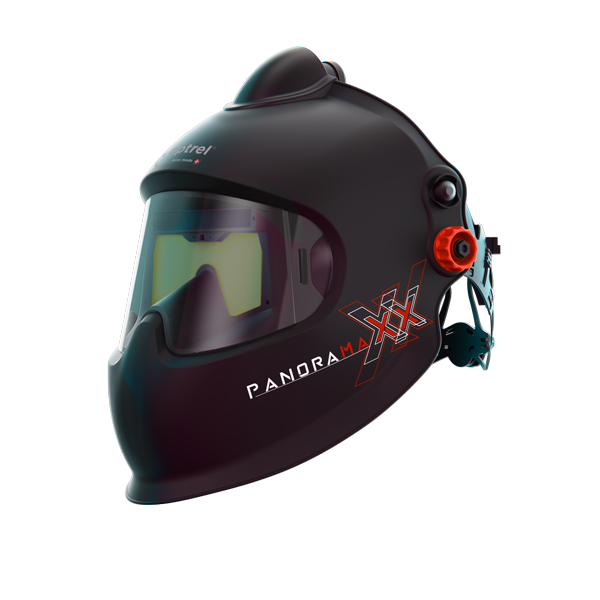

Panoramaxx Pure Air L: Fresh Air Laser-Welding PAPR Helmet with color filter for laser protection, protection level 2 with IsoFit® headgear.
The Optrel Panoramaxx L is a passive laser helmet designed for high protection and comfort in laser applications including laser cleaning, laser cutting, or inspection work with a laser welding robot. With protection level 2, a 6x wider panoramic field of view, and IsoFit® headgear, it ensures clear visibility, stability, and heat resistance up to 220°C. Lightweight at 605 g, the Panoramaxx L is ideal for laser applications in the 1030-1100 nm range and complies with CE, ANSI Z87.1, and other standards for enhanced safety.
Compatible with the e3000X PAPR (powered air-purifying respirator) system.
| Protection levels | Passive filter: Protection level 2.0 |
| Field of View | Depending on the headband setting, 2.3 to 6.3 times the field of view of a 100 x 50mm industry standard anti-glare cassette |
| Dimensional Stability | Protective Welding Mask: up to 220°C Front Lens: Up to 137°C |
| Eye Protection | 2 OS 1 S 1030-1100 D LB7 IR LB8 OS 1030-1100 OD7 C5 PS3 ISO 19818-1 OS CE |
| Operating Temperature | -10°C to +55°C / 14°F to 131°F |
| Storage Temperature | -20°C to +70°C / -4°F to 158°F |
| Total Weight | 605g / 21.3oz |
| Certifications | CE, UKCA, complies to ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3 |
| Scope of Delivery | Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Lens, Warranty Card |
| Guarantee | 2 years from date of purchase for manufacturing and material defects |
