Sphere Series

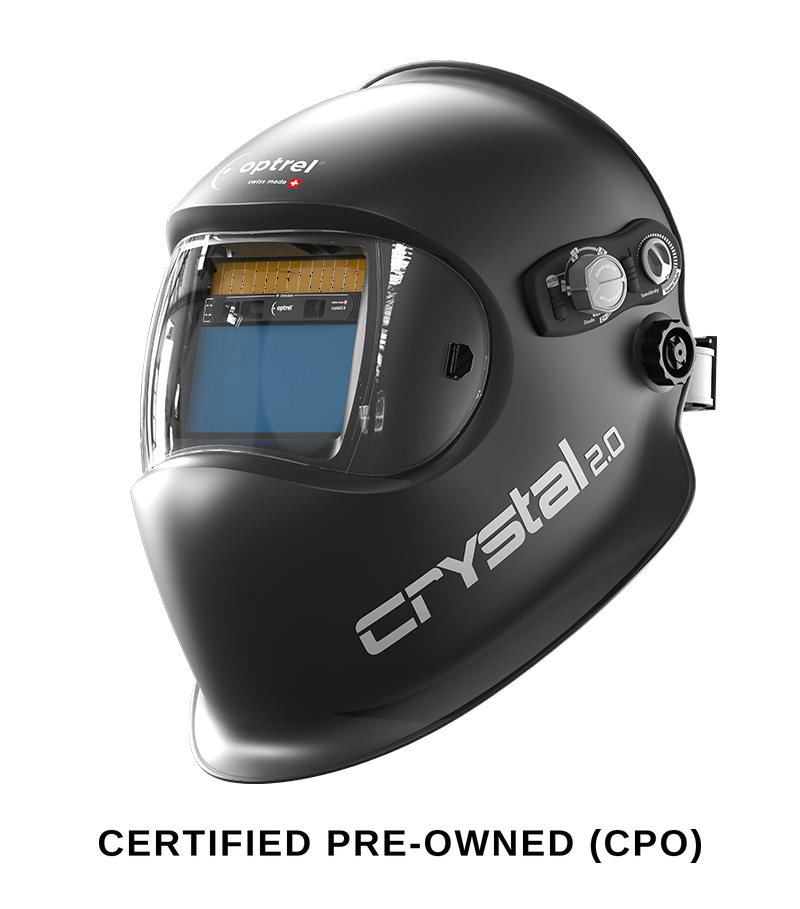

Crystal 2.0 – Black (Certified Pre-Owned)

Product #: 1006.901.CPO

Seeing is believing w/ the Optrel Crystal 2.0 (Black) welding helmet. A light transmission of 31% in bright condition (protection level 2) gives you a practically unclouded, clear view of the working environment. It’s similar to looking out a window. You’ll have a nearly perfect color spectrum so you can see what is going on in the weld pool, before, during, and after welding. Talk about enlightenment!

Optrel’s CPO (certified pre-owned) products: Certified Pre-Owned products are marked with .CPO in the part#. These products have been used, reconditioned, and thoroughly tested at Optrel’s headquarters in Switzerland. Technically, there are no deviations from the original products. However, the product may have a few cosmetic defects. The factory warranty has been reduced to 12 months. Optrel’s goal with this initiative is to reuse materials, thereby conserving resources and protecting the environment.

List Price:

Original price was: $669.00.Current price is: $335.00.

In stock

In stock

Features

Icon for "Crystal Lens Tech 2.0" represented by its text on the center, and pentagon symbol on top.

Crystal Lens Technology 2.0

A clear and brilliant view before, during and after welding with a light state of 2.0
Icon for "True Color View" represented by three circles intersecting.

True-Color View

Realistic high-contrast color perception with no green or blue tint.

Replaceable Batteries

Replaceable 2×CR2032 batteries for easy maintenance and continuous operation.
Icon for "Twilight Function" represented by multiple vertical lines descending to the right.

FadeTronic®

Opening of the anti-glare display can be continuously adjusted after welding to significantly reduce eye fatigue
Icon for "Shadetronic" represented by its text inside a circle with scale showing increasing decibels.

ShadeTronic®

Automatically adapts to changing light conditions of the welding arc
Icon for "Grinding Mode" represented by angle grinder disc.

Grinding Mode

The brightest vision during grinding work ever to be offered by a welding helmet
An icon for "External Operability" represented by ___

External Operability

Toggle grind mode and shade level adjustments without removing your helmet
Icon for "Sensitivity Regulation" represented by a welding helmet and sun.

Sensitivity Regulation

Adapts the helmet to your environment and requirements
Icon for "Delay Function" represented by an arch and the number one, two, and three.

Delay Function

Prevents eye strain by controlling how quickly the lens returns to light state.
Icon for "Comfort Headband" represented by welding helmet with left-and-right arrows below and above it.

Comfort Headband

Guarantees optimal weight distribution and is easy on the neck
Icon for "Patented Eccentric" represented by grinding disc and impact drill.

Patented Excenter

Positions the helmet optimally on your head – with just one twist
Icon for "Overhead Welding" represented by grinding disc and impact drill.

Overhead Welding

The rounded front cover lens makes this design suitable for overhead welding
An icon for "lightweight" represented by a piece of a bird's feather in white font.

Lightweight

Lightweight design for maximum comfort
An icon for "Warranty Extension of 2+1 Years" represented by numbers two and one.

Warranty Extension

Simply register here to be covered for 3 years after purchase

Specifications

Shade levels Inactive: Shade level 2.0
Active, Manual: Shade level 4-12
Autopilot Automatic protection level regulation across a range from 4-12 with individual calibration option of ± 2
Power supply Solar cells, 2 lithium batteries (CR2032)
Sensors Three sensors
Sensitivity Infinitely adjustable, now with “Super High” sensitivity
Switching time Bright to dark: 0.100 ms at room temperature, 0.070 ms at 55°C
Dark to bright: 0.1 s to 2.0 s (with dimming function)
Classification EN379 Optical Class: 1
Stray Light Class: 1
Homogeneity Class: 1
Angle Dependency Class: 2
Shape Stability Welding mask: up to 220 °C / 428 °F
Front cover lens: up to 137 °C / 279 °F
Eye Protection Ultraviolet / Infrared Protection: Maximum protection in the entire protection level range
Operating Temperature -10°C to +70°C / 14°F to 158°F
Storage Temperature -20°C to +80°C / -4°F to 176°F
Total Weight 460g / 18.7oz
Scope of Delivery Welding helmet, manual
Warranty 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register

Applications

  • Elektrode Welding (Stick Welding, SMAW)
  • MIG/MAG (GMAW)
  • GMAW High melting rate process
  • Flux Cored Wire Welding
  • TIG Welding (GTAW)
  • Plasma Arc Welding
  • Micro Plasma Arc Welding
  • Plasma Cutting
  • Gas Welding
  • Grind Mode
